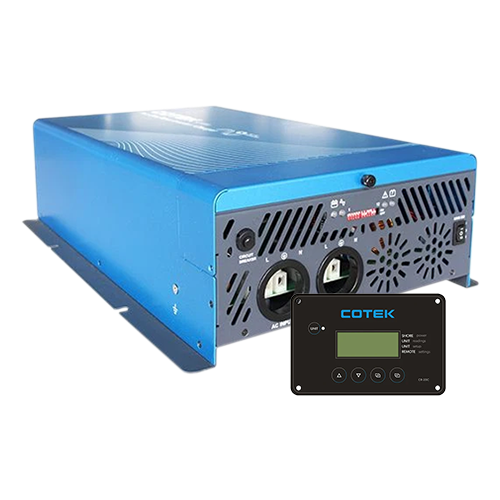

COTEK SC Series SC3000-112-COMBO 3kW 12VDC 115VAC UL Pure Sine Wave Inverter/Charger w/ CR-20C Remote Control

COTEK SC Series SC3000-112-COMBO 3kW 12VDC 115VAC UL Pure Sine Wave Inverter/Charger w/ CR-20C Remote Control

Our Price: $1,249.00


Product Code: SC3000-112-COMBO
Qty:

Description Document(s)


COTEK SC Series SC3000-112-COMBO 3kW 12VDC 115VAC UL Pure Sine Wave Inverter/Charger w/ CR-20C Remote Control

Manufacturer Part#: SC3000-112-COMBO

The COTEK SC3000-112-COMBO Inverter/Charger is a Pure Sine Wave, Bi-directional inverter charger with 5 in 1 operating modes. The SC series is capable of combining power from both AC and DC sources to power larger loads. All COTEK products comply with international safety stands from UL, CE, and FCC.

This combo comes with RC-20C Remote Control.

  • Bi-directional inverter and charger
  • 3 stage charging function
  • Wide working temperature range: -20°C ~ 40°C
  • Warranty: 2 years
Specifications

Full data sheet can be found in the Document(s) tab above.

Inverter Mode - Input
Nominal Voltage 12 VDC
Input Voltage Range (±0.5V) 10.5~16.5 VDC
Input Over-Voltage Protection (±0.5V) 16.5 VDC
Input Over-Voltage Warning (±0.5V) 15.5 VDC
Input Under-Voltage Protection (±0.5V) 10.5 VDC
Input Under-Voltage Warning (±0.5V) 11.0 VDC
Input Current (Max) 390 A
No Load Current < 5.0 A @12.5V
Stand-By Current < 0.6 A

Inverter Mode - Output
Continuous Output Power 3000 VA ± 3%
Surge Power Load 101%~115% (1 Min)
6000 VA (2 Sec)
Frequency 50/60 Hz ± 0.3 Hz
(User-Selectable)
Output Voltage 100 / 110 / 115 / 120VAC ±3%
Max. Efficiency (Full Load) 89%
Output Waveform Pure Sine Wave (THD < 5% @ 12.5V/25V/115VAC, linear load)
(THD < 3% @ 12.5V/25V/230VAC, linear load)
INV. AC Output 30A MAX
AC Output 50A MAX
Charger Mode - AC Input
Nominal Voltage / Frequency 110 VAC, 50 / 60Hz
(User-Selectable)
Input Voltage Range 90 ~ 132 VAC
Input Frequency Range 50Hz:47 ~ 53 Hz /
60Hz:57 ~ 63 Hz
Nominal Current 24.5A (@110VAC)
Efficiency (Max.) >87%
AC Input 30 A MAX
Power Factor Correction (PFC) >0.95 (Max.)

Charger Mode - DC Input
Charging Current Range 37.5 / 70 / 112.5 / 150A
Max. Output Voltage 14.4 VDC@ GEL TYPE
Battery Temperature Comp. -25 mV per °C
Battery Control
(3-stage Battery Chargers)
Bulk / Absorption / Float

Safety and EMS
Safety Standards UL458 & Supplement SA / UL1741
E-mark ----
EMC Standards Certified FCC Class A

Other
Dimension (W x H x D) 314 x 127.4 x 508.8 mm
8.46 x 4.57 x 17.83 in
Weight 9.6kg / 21.16 lbs
