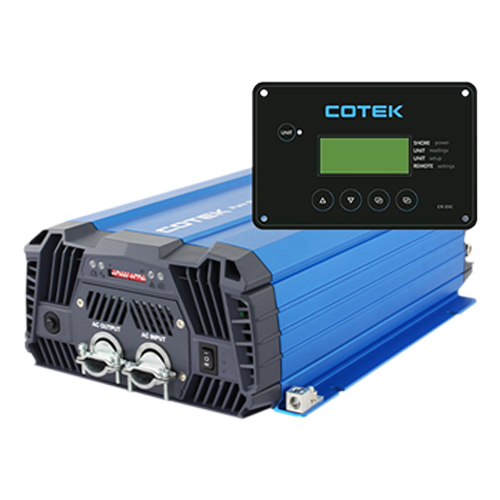

COTEK SC Series SC2000-112-COMBO 2kW 12VDC 115VAC UL Pure Sine Wave Inverter/Charger w/ RC-20C Remote Control
COTEK SC Series SC2000-112-COMBO 2kW 12VDC 115VAC UL Pure Sine Wave Inverter/Charger w/ RC-20C Remote Control

Alternative Views:
Our Price: $999.00


Product Code: SC2000-112-COMBO
Qty:

Description Document(s)


COTEK SC Series SC2000-112-COMBO 2kW 12VDC 115VAC UL Pure Sine Wave Inverter/Charger w/ RC-20C Remote Control

Manufacturer Part#: SC2000-112-COMBO

The COTEK SC2000-112 Inverter/Charger is a Pure Sine Wave, Bi-directional inverter charger with 5 in 1 operating modes. The SC series is capable of combining power from both AC and DC sources to power larger loads. All COTEK products comply with international safety stands from UL, CE, and FCC.

This combo comes with RC-20C Remote Control.

Features:

  • Bi-directional inverter and charger
  • 3 stage charging function
  • Wide working temperature range: -20°C ~ 40°C
  • Warranty: 2 years
Specifications

Full data sheet can be found in the Document(s) tab above.

Inverter Mode - Input
Nominal Voltage 12 VDC
Input Voltage Range (±0.5V) 10.5 ~ 16.5 VDC
Input Over-Voltage Protection (±0.5V) 16.5 VDC
Input Over-Voltage Warning (±0.5V) 15.5 VDC
Input Under-Voltage Protection (±0.5V) 10.5 VDC
Input Under-Voltage Warning (±0.5V) 11.0 VDC
Input Current (Max) 260 A
No Load Current < 4.0 A @12.5V
Stand-By Current < 0.4 A
Inverter Mode - Output
Continuous Output Power 2000 VA ± 3%
Surge Power Load 101%~115% (1 Min)
4000 VA (2 Sec)
Frequency 50/60 Hz ± 0.3 Hz
(User-Selectable)
Output Voltage 100 / 110 / 115 / 120VAC ±3%
Max. Efficiency (Full Load) 89%
Output Waveform Pure Sine Wave (THD < 5% @ 12.5V/25V/115VAC, linear load)
(THD < 3% @ 12.5V/25V/230VAC, linear load)
INV. AC Output 20A MAX
AC Output 30A MAX

Charger Mode - AC Input
Nominal Voltage / Frequency 110 VAC, 50 / 60Hz
(User-Selectable)
Input Voltage Range 90 ~ 132 VAC
Input Frequency Range 50Hz:47 ~ 53 Hz / 60Hz:57 ~ 63 Hz
Nominal Current 16.5A (@110VAC)
Efficiency (Max.) >88%
AC Input 30 A MAX
Power Factor Correction (PFC) >0.95 (Max.)
Charger Mode - DC Output
Charging Current Range 25 / 50 / 75 / 100A
Max. Output Voltage 14.4 VDC@ GEL TYPE
Battery Temperature Comp. -25 mV per °C
Battery Control (3-stage Battery Chargers) Bulk / Absorption / Float

Safety and EMS
Safety Standards UL458 & Supplement SA / UL1741
E-mark ----
EMC Standards Certified FCC Class A
Other
Dimension (W x H x D) 251 x 116 x 453 mm
8.46 x 4.57 x 17.83 in
Weight Inverter / Charger 6 kg / 13.23 lbs
